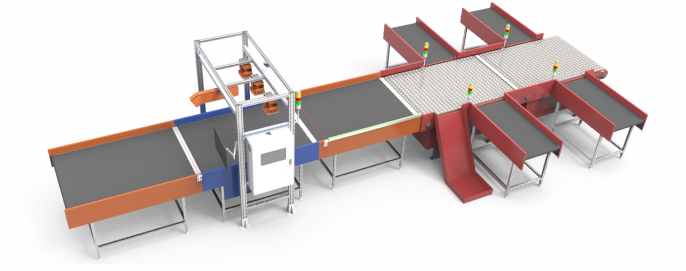

Dynamic DWS Weighing and Reading System

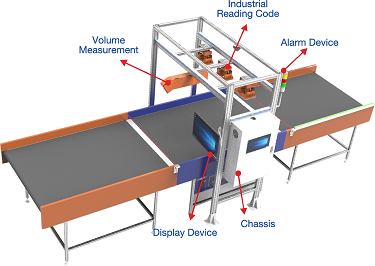

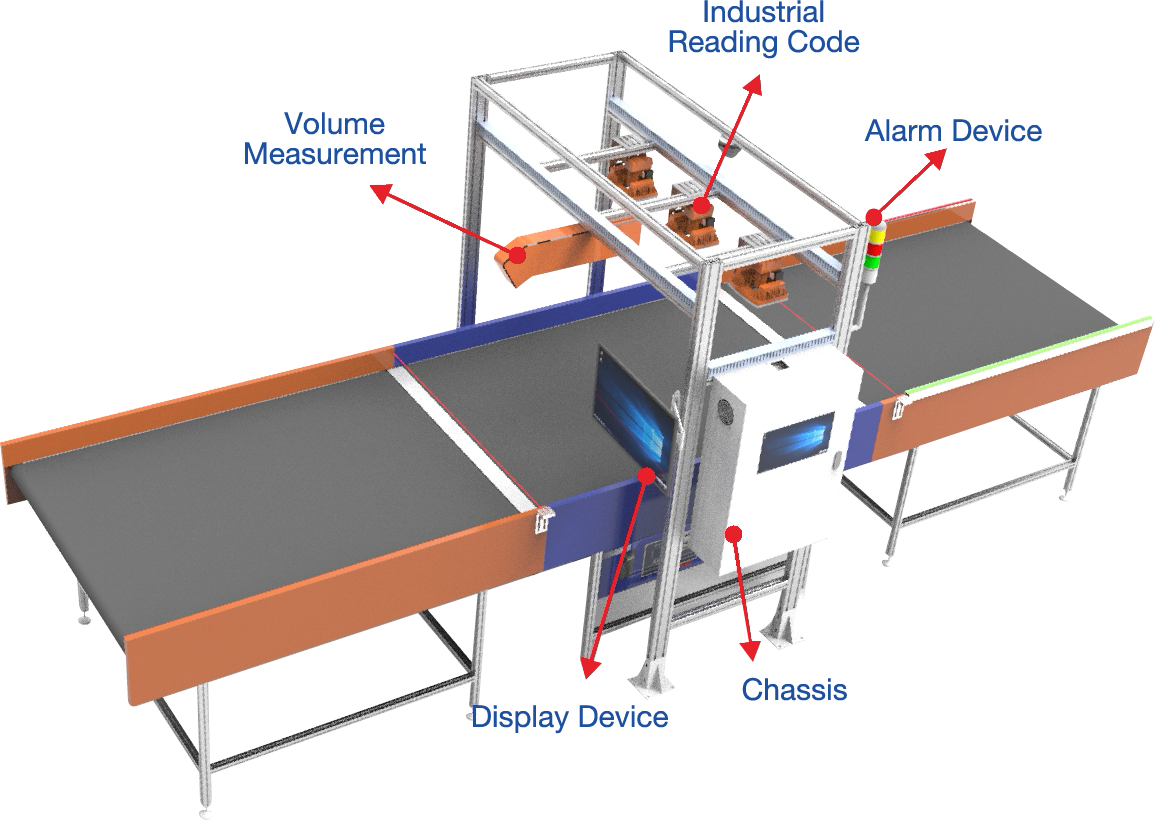

Connectek DWs weighing allin-one machine is a fully automatic system which integrates dynamic weighing /volume measurement / bar code scanning / cargo infomation processing. The system adopts 3D laser measurement,dynamic belt scale and industrial visual code reading technology to realize the requirements of weighing,measuring square and code reading. And can timely and accurately obtain the weight,volume,bar code data of the goods and upload them in real time.

 Model:Dynamic   DWS   Weighing   System   CLD-6000   (hexahedral   scan)

● High-speed and accurate automatic measurement

● Dynamic measurement technology to realize on-line real-time measurement.

● Modular design to meet the various needs of customers.

● Rich software interface,customizable software.

Measurement technology: 3D binocular vision technology

Range:0.1KG-60KG

Volume accuracy: plus or minus 10 mm

Measuring range:1200/800/800/800(mm)

Weight accuracy:1x3000

Automatic scanning: smart /industrial camera reading code

Scan depth of field:60cm

Scan recognition rate:99.5%

Height of conveyor line off the ground: 700mm (standard)

Conveyor line width:1200mm(standard)

Capacity:3500 pieces per hour

Pipeline speed:50-100m/min

Power supply: single-phase 220V 50~60HZ

Peripheral accessories: undertake worktable (optional parts)

Data interface: develop docking program customized according to demand
